VSAN : Migrate VSAN cluster from vSS to vDS

How to migrate a VSAN cluster from vSS to vDS

I am sure there some of you that is currently a VSAN cluster in some shape or form either in POC, Development or Production environment.  It provides a cost effective solution that is great for remote offices or even management clusters and can be implemented and managed very easily but as the saying goes nothing ever come easy and you have to work for it.  The same goes here and there are a lot of prerequisites for a VSAN environment that is crucial for implementing a healthy system that performs to its full potential.  I will not go into much detail here and feel free to contact us if any services are required.
One of the recommendations for VSAN is to use a vDS and your VSAN license actually includes the ability to use vDS which allows you as our customer to take advantage of simplified network management regardless of the underlying vSphere edition.

If you upgrade from vSS to vDS the steps are a bit different that your normal migration.  I recommend you put the host into maintenance mode with ensure accessibility.  Verify the uplink used for VSAN VMkernel and use the manage physical network adapter to remove the vmnic from vSS and to add it to vDS. Now migrate the VMkernel to the VDS.  If you review the VSAN health the network will show failed.
To verify multicast network traffic is flowing from you host use the following command on the ESXi host using bash shell:
#tcpdump-uw -i vmk2 -n -s0 -t -c 20 udp port 23451 or ump port 12345
To review your multicast network settings
#esxcli vsan network list
Ruby vSphere Console (RVC) is also a great tool to have in your arsenal for managing VSAN and following command can be used to review the VSAN state:
vsan.check_state <cluster>
To re-establish the network connection you can use the following command:
vsan.reapply_vsan_vmknic_config <host>

Rerun the VSAN health test and verify Network shows passed.

Now that the VSAN network is up and running you can migrate the rest of VMkernels.

Monday, August 1, 2016

VSAN - on-disk upgrade error "Failed to realign following Virtual SAN objects"

I upgraded the ESXi hosts from 6.0 GA to 6.0U2 and selected upgrade for VSAN On-disk format Version, however this failed with following error message:

"Failed to realign following Virtual SAN objects:  XXXXX, due to object locked or lack of vmdk descriptor file, which requires manual fix"


I reviews the VSAN health log files at following location:
/storage/log/vmware/vsan-health/vmware-vsan-health-service.log

Grep realigned


Grep Failed


I was aware of this issue due to previous blog posts on same problem and new of KB 2144881 which made the task of cleaning objects with missing descriptor files much easier.

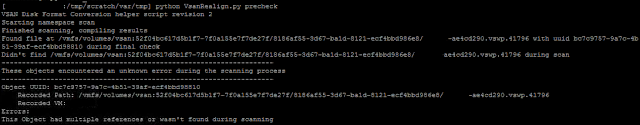

I ran the script: python VsanRealign.py -l /tmp/vsanrealign.log precheck.

I however received another alert and the python script did not behave as it should with it indicating a swap file had either multiple reverences or was not found.



I then used RVC to review the object info for the UUID in question.


I used RVC again to try and purge any inaccessible swap files:
vsan.purge_inaccessible_vswp_objects ~cluster

no objects was found.

I then proceeded to review the vmx files for the problem VM in question and found reference to only the original *.vswp file and not with additional extension of *.vswp.41796

Every VM on VSAN has 3 swap files:
vmx-servername*.vswp
servername*.vswp
sername*.vswp.lck

I figured this servername*.vswp.41796 is just a leftover file and bear no reference to the VM and this is what is causing the on-disk upgrade to fail.

I proceeded to move the file to my /tmp directory  (Please be very careful with delete/moving any files within a VM folder, this is done at your own risk and if you are not sure I highly recommend you contact VMware support for assistance)

I ran the python realign script again. This time I received a prompt to perform the autofix actions to remove this same object in question for which i selected yes.



I ran the on-disk upgrade again and it succeeded.


Even though VMware provides a great python script that will in most instance help you clean up the VSAN disk groups, there are times when this will not work as planned and then you just have to a bit more troubleshooting and perhaps a phone call to GSS.


links:
https://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2144881




VSAN - cache disk unavailable when creating disk group on Dell

I ran into an issue at customer where the SSD which is to be used as the cache disk on the VSAN disk group was showing up as regular HDD.  However when I reviewed the storage device the disk is visible and is marked as flash...weird.  So what is going on here.

As I found out this due to a flash device being used with a controller that does not support JBOD.

To fix this I had to create a RAID 0 virtual disk for the SSD.  If you have a Dell controller this means you have to set the mode to RAID but make sure that all your regular HDDs to be used in the disk group is set to non-raid!  Once host is back online you have to go and mark the SSD drive as flash.  This is the little "F" icon in the disk devices.

This environment was configured with all the necessary VSAN prerequisites for Dell in place, you can review this on the following blog post:
http://virtualrealization.blogspot.com/2016/07/vsan-and-dell-poweredge-servers.html


Steps to setup RAID-0 on SSD through lifecycle controller:


  1. Lifecycle Controller
  2. System Setup
  3. Advanced hardware configuration
  4. device settings
  5. Select controller (PERC)
  6. Physical disk management
  7. Select SSD
  8. From drop down select “convert to Raid capable”
  9. Go back to home screen
  10. Select hardware configuration
  11. Configuration wizard
  12. Select RAID configuration
  13. Select controller
  14. Select Disk to convert from HBA to RAID (if required)
  15. Select RAID-0
  16. Select Physical disks (SSD in this case)
  17. Select Disk attribute and name Virtual Disk.
  18. Finish
  19. Reboot

After ESXi host is online again then you have to change the Disk to flash. This is due to RAID abstracting away most of the physical device characteristics and the media type as well.

  • Select ESXi host
  • Manage -> Storage -> Storage adapters
  • Select vmhba0 from PERC controller
  • Select the SSD disk
  • Click on the "F" icon above.




VSAN - Changing Dell Controller from RAID to HBA mode

So had to recently make some changes for customer to set the PERC controller to HBA (non-raid), since previously it was configured with RAID mode and all disks was in RAID 0 virtual disks.  Each disk group consists of 5 disks with 1 x SSD and 4 x HDD.

I cannot overstate this but make sure you have all the firmware and drivers up to date which is provided in the HCL.

Here are some prerequisites for moving from RAID to HBA mode:  I am not going to get into details for performing these tasks.
  • All virtual disks must be removed or deleted.
  • Hot spare disks must be removed or re-purposed.
  • All foreign configurations must be cleared or removed.
  • All physical disks in a failed state, must be removed.
  • Any local security key associated with SEDs must be deleted.


I followed these steps:
  1. Put host into maintenance mode with full data migration. Have to select full data migration since we will be deleting the disk group.
    1. This process can be monitored in RVC using command vsan.resync_dashboard ~cluster
  2. Delete the VSAN disk group on the host in maintenance.
  3. Use the virtual console on iDRAC and select boot next time into lifecycle controller
  4. Reboot the host
  5. From LifeCycle Controller main menu
  6. System Setup
  7. Advanced hardware configuration
  8. Device Settings
  9. Select controller card
  10. Select Controller management
  11. Scroll down and select Advanced controller management
  12. Set Disk Cache for Non-RAID to Disable
  13. Set Non RAID Disk Mode to Enabled

Friday, July 22, 2016

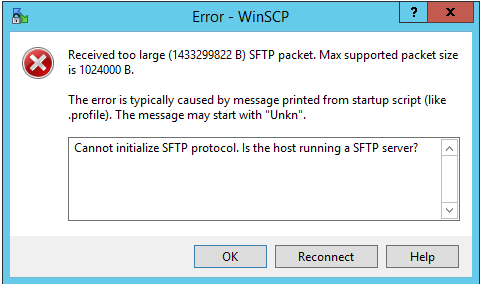

WinSCP connection to VCSA failed: "Received too large SFTP packet. Max supported packet size is 1024000 B"


The following error might appear when you try to connect with WinSCP to your VCSA.


This is due to login scripts that are printing words and the first 4 characters cast into the number(represents the first 4 bytes read from the server)

To fix the problem you can usually move the command that print the login script text to another proper interactive script or just remove completed, however in VMware the scenario is different and the default shell has change from bash to appliancesh.

VMware's resolution is to use the SCP file protocol through bash shell.  However after I change to SCP I received the following error: (when default shell not set to bash)





This was fixed after changing the default shell.  I am using a newly created user account that can be used to access the server through WinSCP.  Just remember you would have to modify permissions on your files to copy them if going down this route.  You can use root account to temporary change the shell from bash to appliance to access with WinSCP. Entirely up to you.


>shell.set --enabled True
>shell
>useradd winscp
>passwd winscp
>visudo (add user with root access)
>chsh -s /bin/bash winscp


If you are using root you temporary change to bash shell and then return to appliance shell:
To return:
>chsh -s /bin/appliancesh useraccount







Links:

https://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2107727

https://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2115983

https://winscp.net/eng/docs/message_large_packet



Thursday, July 21, 2016

VSAN - migrate VSAN cluster to new vCenter Server

I had to recently perform a VSAN cluster migration from one vCenter Server to another. This sounds like a daunting task but ended up being very simple and straight forward due to VSAN's architecture to not have a reliance on vCenter Server for its normal operation(nice on VMware!) As a bonus the VMs does not need to be powered off or loose any connectivity.(bonus!)

Steps to perform:
  • Deploy a new vCenter Server and create a vSphere Cluster
  • Enable VSAN on the cluster.
  • Install VSAN license and associate to cluster
  • Disconnect one of the ESXi hosts from your existing VSAN Cluster
  • Add previously disconnected Host to the new VSAN Cluster on your new vCenter Server.
    • You will get a warning within the VSAN Configuration page stating there is a "Misconfiguration detected". this is normal due to the ESXi not being able to communicate with the other hosts in the cluster it was configured with.
  • Add the rest of the ESXi hosts.
  • After all the ESXi are added back the warning should disappear.


links:



VSAN upgrade - Dell Poweredge servers

I have been meaning to write up on a VSAN upgrade on a Dell R730xd's with PERC H730 which I recently completed at a customer.  This is not going to be lengthy discussion on this topic but primarily want to provide some information on tasks I had to perform for upgrade to VSAN 6.2

  1. The VSAN on-disk metadata upgrade is equivalent to doing a SAN array firmware upgrade and therefore requires a good backup and recovery strategy to be in place before you proceed.
  2. Migrate VM’s off of host.
  3. Place host into maintenance mode.
    1. You want to use whatever the quickest method is to update the firmware, for VSAN's sake. Normally Dell FTP update if network available to configure.
    2. When you put a host into maintenance mode and choose the option to "ensure accessibility", it doesn't migrate all the components off but just enough so that the policies will be in violation.  A timer starts when you power it off, and if the host isn't back in the VSAN cluster after 60 minutes, it begins to rebuild that host's data elsewhere in the cluster  If you know it will take longer than 60min or where possible select full data migration.
    3. You can view the resync using the RVC command "vsan.resync_dashboard <cluster/host>"
  1. Change advanced settings required for PERC H730
    1. https://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2144936
    2. esxcfg-advcfg -s 100000 /LSOM/diskIoTimeout
    3. esxcfg-advcfg -s 4 /LSOM/diskIoRetryFactor
  2. Upgrade the lsi_mr3 driver. VUM is easy!
  3. Login to DRAC and perform firmware upgrade:
  4. Upgrade Backplane expander (BP13G+EXP 0:1)
    1. Firmware version 1.09 ->  3.03
  5. Upgrade DRAC H730 version
      1. 25.3.0.0016 ->  25.4.0.0017
  1. Login to lifecycle controller and set/verify BIOS configuration settings for controller
    1. https://elgwhoppo.com/2015/08/27/how-to-configure-perc-h730-raid-cards-for-vmware-vsan/
    2. Disk cache for non-raid = disabled
    3. Bios mode = pause on errors
    4. Controller mode = HBA (non-raid)
  2. After all hosts upgraded, verify VSAN cluster functionality and other prerequisites:
    1. Verify no stranded objects on VSAN datastores by running python script on each host.
    2. Verify persistent log storage for VSAN trace files.
    3. Verify advanced settings still set from task 3!
  3. Place each host into maintenance mode again.
  4. Upgrade ESXi host to 6.0U2.
  5. Upgrade the on-disk format to V3.
    1. This task runs for a very long time and has alot of sub-steps which takes place in the background.  It also migrates the data off of each disk group to recreate as V3 .  This has not impact on the VMs.
    2. This process is repeated for all disk groups.
  6. Verify all disk groups upgrade to V3.
  7. Completed

Ran into some serious trouble and had a resync task that ran for over a week due to a VSAN 6.0 KB 2141386 which appears on  heavy utilization storage utilization.  Only way to fix this was to put host into maintenance mode with full data migration, destroy and recreate the disk group.

Also ALWAYS check the VMware HCL to make sure your firmware is compatible. I can never say this enough since it is super important.

This particular VSAN 6.0 was running with outdated firmware for both backplane and PERC H730. Also found that controller was set to RAID for disks in stead of non-raid (passthrough or HBA mode).


Links:

VMware as a kick@ass KB on best practices for Dell PERC H730 for VSAN implementation. Link  provide below.

https://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2109665

https://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2144614

https://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2144936


https://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2141386




VSAN upgrade - prerequisites

This is just my list of prerequisites for a VSAN upgrade.  Most of these items are applicable to a new install as well but more focused on a upgrade.

Please feel free to provide feedback and would to add to my list with your experiences.

Prerequisites:

  • The VSAN on-disk metadata upgrade is equivalent to doing a SAN array firmware upgrade and therefore requires a good backup and recovery strategy to be in place before we can proceed.


Links:



Friday, July 15, 2016

Dell rack servers - Upgrade firmware using Dell repository manager

I had to recently perform some firmware upgrades for customer on their Dell R710 and R730xd servers.  As you all know there are multiple ways to successfully upgrade the firmware and I want to touch on the upgrade through bootable virtual cd, optical cd or USB since this was the only method available to me at the time.

Firmware upgrade methods available:
  • Upgrade using bootable linux iso
  • Upgrade using server update utility(SSU) iso/folder with Dell lifecycle controller
  • Upgrade using Dell FTP Site with lifecycle controller

All of these methods have some great information out there on Dell website as well as blogs but I wanted to just go through my steps using bootable linux iso and primarily how to create it that ISO.

My preferred method is using the Dell FTP site with the lifecycle controller but this not always possible especially if you have trunked ports and have to specify a VLAN (in later iDRAC firmware it is now possible to specify a VLAN!)
The reason why the FTP site method is better in my opinion is because the firmware comparison is done upfront and only the necessary firmware is downloaded for component that are outdate. This decrease the firmware upgrade process considerably compared to the bootable iso that compares everything single component.(this only when you use the bundle, which I do in most instance since who wants to go manually through every single component and check which is required for your server:)


Steps:

Thursday, May 26, 2016

vCSA & PSC: Update/Patching options available

The update of either vCSA or PSC can be achieved through the VAMI interface which was introduced back in 6.0U1 or through the appliancesh command-line interface.

Method 1: VAMI and URL:
This method requires internet access from your appliances.

  • Login to VAMI
  • https://vcenterserver.domain.com:5480/
    • U: root / P: password
  • From navigator select Update
  • This will display the current version details
  • Select Check Updates -> Check URL
  • This method will go out to VMware's repository https://vapp-updates.vmware.com/vai-catalog/valm/... and verify you are on latest.
  • If available updates then select the Install updates -> Install all updates
  • Accept EULA
  • Wait for updates to complete.



Method 2: VAMI and custom URL:
This method can be used if you do not have internet access from your appliances by setting up a local repository.

  • Setup a webserver on your network (ISS or Apache) that will be accessible to the vCSA and PSC.
  • Create a directory called PSC_updates or VCSA updates.  Names can be changed.
  • On VMware support site now download update but make sure to download the zip update bundle.
  • Extract the zip update bundle to the folder you created earlier.
  • Login to VAMI
  • https://vcenterserver.domain.com:5480
    • U: root / P: password
  • From navigator select Settings
  • Select "Use specified repository"
  • Click OK
  • Select Check for updates
  • If available updates then select the Install updates -> Install all update
  • Accept EULA
  • Wait for updates to complete
Method 3: VAMI and CDROM:

This method is pretty straight forward.

  • On VMware support site download the ISO for latest vCSA and/or PSC.
  • Login to vCenter Web client
  • Select vCSA or PSC appliance VM
  • Launch remote console
  • Select VMRC -> Removable devices -> CD/DVD drive 1 -> Connect to Disk Image File (iso)
  • Mount the ISO downloaded from VMware support site
  • Login to VAMI
  • https://vcenterserver.domain.com:5480/
    • U: root / P: password
  • From navigator select Update
  • Select Check Updates
  • Select Check CDROM
  • If available updates then select the Install updates -> Install all update
  • Accept EULA
  • Wait for updates to complete
Method 4: Using appliancesh command line

This method was the only way to update the appliance when vCenter 6 was released since the VAMI was only introduced in 6.0U1.  You can either mount and ISO or point to a URL for updates.  The URL can be the default VMware or

  • On VMware support site download the ISO for latest vCSA and/or PSC.
  • Select vCSA or PSC appliance VM
  • Launch remote console
  • Select VMRC -> Removable devices -> CD/DVD drive 1 -> Connect to Disk Image File (iso)
  • Mount the ISO downloaded from VMware support site
  • SSH to VCSA or PSC
  • type # appliancesh
  • enter root password
  • To use CDROM
    • type # software-packages install --iso --acceptEulas
  • To use default VMware URL
    • type # software-packages --url (This will use the default vmware URL to check)
  • to use local ropository URL
    • type # software-packages --url https://web.domain.com/VCSA_update/

Product patches can be downloaded from this VMware site:
https://my.vmware.com/group/vmware/patch#search


Log files to review for updates:
/var/log/vmware/applmgmt/software-packages.log



Wednesday, May 25, 2016

vRealize Log Insight: Configuring agents


The vSphere content pack provides powerful insight into your vSphere logs, allowing you to make informed and proactive decisions within your environment.  For the exercise I am just reviewing some of the VMware products and providing notes I took during installation. Sorry if they seems a bit all over the place :)

Log Insight agent now gets pre-installed on some of the appliances which is great and means no need to install agents manually.  Some of the VMware products that has agent pre-installed:

vRealize Business
vRealize Operations Manager (beginning from 6.1)
vRealize Orchestrator (beginning from 7.0.1)
vRealize Automation (beginning from 7.0.1)
vRealize Log Insight

Here are some basic functions which will help a lot for instructions on content packs:

Install Content Packs:
Login to vRealize Log insight.
Select the stack menu button in top right hand corner
Select Content Packs
Installation has been simplified a lot since you do not have to go to VMware solution exchange anymore to download and manually install the content packs, it is available straight from Marketplace window.  Super awesome!
Just click on Install for which ever content pack you want to install.

vRealize Orchestrator control center : HTTP Status 500 Failed to edit Log insight configuration file

With latest vRealize Orchestrator 7.0.1 I was configuring syslog logging integration in control center, to send logs to vRealize Log insight, but ran into error "HTTP Status 500 Failed to edit Log insight configuration file".


Troubleshooting:

Testing on a fresh install and did no run into the problem so came to the conclusion that this error only appears when you upgrade from 7.0 to 7.0.1

SSH into Orchestrator appliance and reviewed the logs.
/etc/var/log/messages

2016-04-27T17:19:32.013813+00:00 ldvro01 sudo:      vco : a password is required ; TTY=unknown ; PWD=/var/lib/vco/configuration/bin ; USER=root ; COMMAND=/var/lib/vco/app-server                          /../configuration/bin/config_liagent.sh /var/lib/vco/configuration/temp/liagent.tmp /var/lib/loginsight-agent/liagent.ini
2016-04-27T17:20:10.075308+00:00 ldvro01 sshd[20887]: rexec line 79: Unsupported option KerberosAuthentication
2016-04-27T17:20:10.075376+00:00 ldvro01 sshd[20887]: rexec line 85: Unsupported option GSSAPIAuthentication

Found the script that gets executed to be /var/lib/vco/configuration/bin/config_liagent.sh which actually resides on /usr/lib/vco/configuration/bin/config_liagent.sh

Listing the folder shows that vco:vco has rwx permission.
:/usr/lib/vco/configuration/bin # ls -ll
-rwx------ 1 vco vco  218 Feb 19 15:09 config_liagent.sh
-rwx------ 1 vco vco  230 Feb 19 15:09 controlcenter.sh
-rw-r--r-- 1 vco vco 6718 Feb 19 15:09 log4j.dtd
-rw-r--r-- 1 vco vco 3315 Feb 19 15:09 propagate.sh
-rwx------ 1 vco vco 1321 Feb 19 15:09 setenv.sh

A password is required is throw in the error message which leads me to think the vco user does not have the necessary permissions when trying to execute the command.

Looking in /etc/sudoers file and found the vco missing the path to the config_liagent.sh file.



Resolution:
Add the path to config_liagent.sh for vco user.

# visudo
scroll to bottom of file.
you will see the following:
vco     ALL=(root) NOPASSWD: /etc/init.d/vco-server, /etc/init.d/vco-configurator
update the line as follows:
vco     ALL=(root) NOPASSWD: /etc/init.d/vco-server, /etc/init.d/vco-configurator, /var/lib/vco/configuration/bin/config_liagent.sh
